Arktis Flat Panel Gamma (FPG) Technology

Arktis' proprietary and unique technology leverages recent breakthroughs to deliver precise and reliable detection solutions. Arktis has developed easy-to-implement radiation detection technology that is cost-effective, mobile and user-friendly.

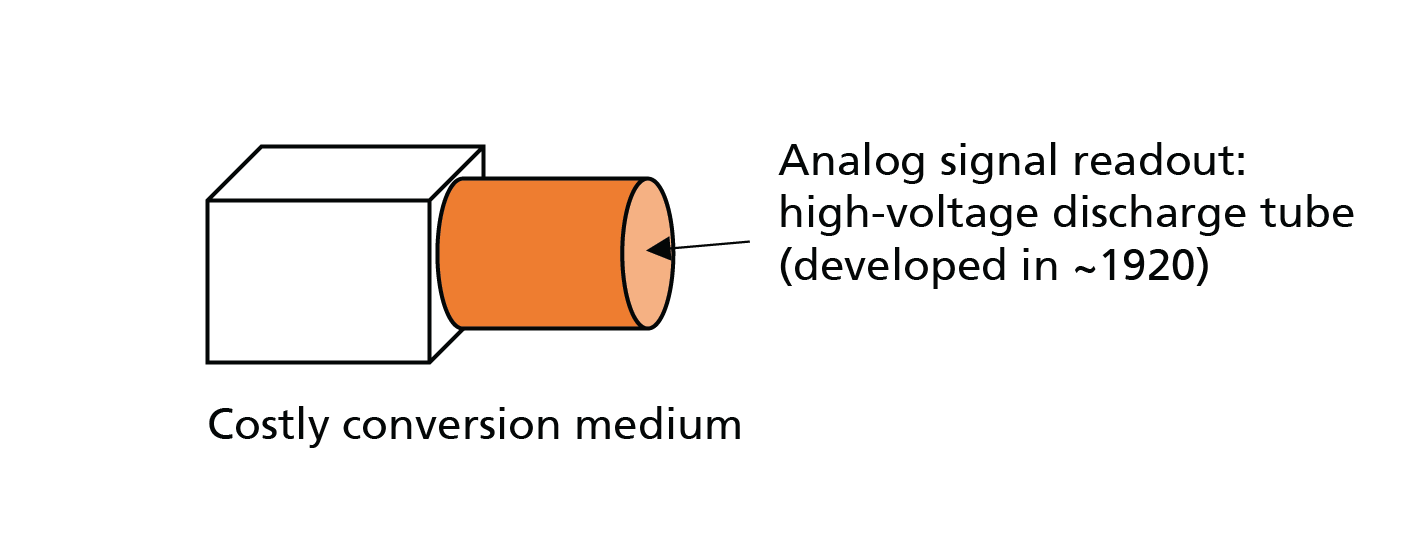

Legacy technology for radiation detection

Photomultiplier tubes (“PMT”)

Handcrafted glass PMTs are used to convert light into electrical signals. Such tubes are fragile, have high quality variability and require high-voltage for operation.  There are only few tube manufacturers worldwide.

Proportional counters & GM tubes (“Geiger counter”)

These counters convert ionization charge into electrical signals. This technology requires high-voltage and is sensitive to vibration.

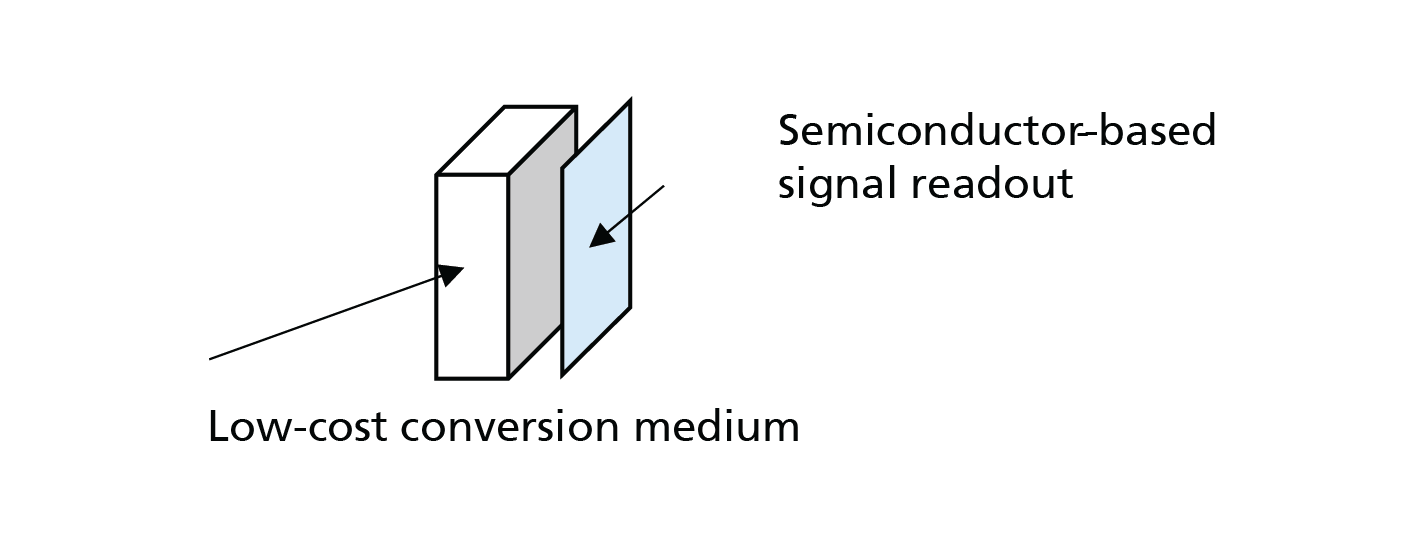

Arktis Flat Panel Gamma detection technology

Key advantages of the semiconductor-based SiPM technology

  • More compact dimensions.
  • Higher mechanical robustness: Not susceptible to vibration or magnetic fields, encapsulated against moisture.
  • Performance: Delivers unrivaled spectral, temporal and spatial resolution.
  • Interoperability and ease-of-integration into other systems facilitated by Power-over-Ethernet (single low-voltage connection) and programmable detector firmware.
  • Manufacturing: Production and assembly can be automated and performed by various manufacturers. The detectors have low quality variability.

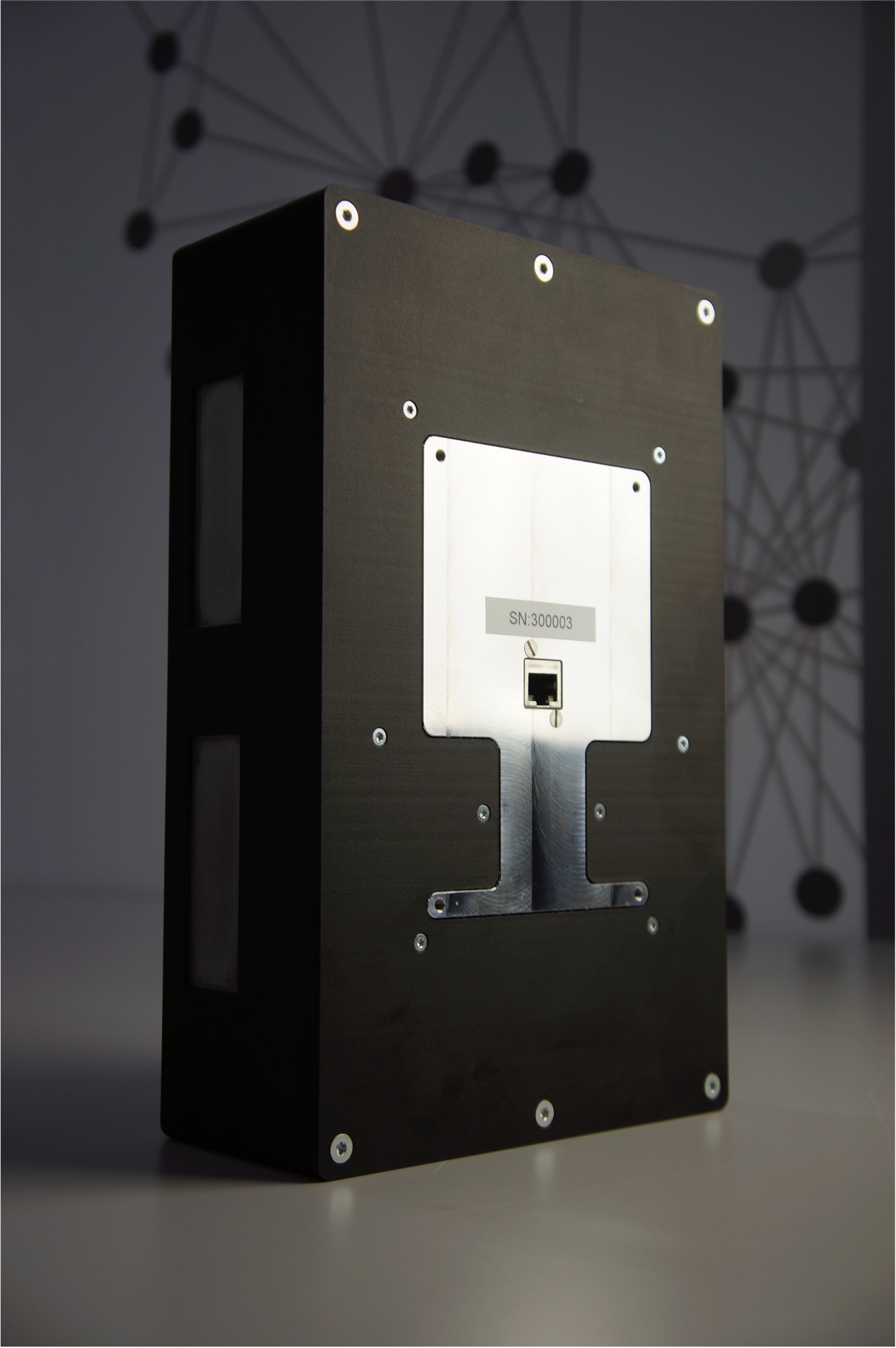

Arktis FPG’s disruptive properties

  • Compact: 50x less dead space
  • Digitally controlled: Firmware rather than analog settings
  • Outperforms: Spectral resolution rivaling 5x more costly NaI scintillators, but with better time and position resolution
  • Rugged: Immune to magnetic fields, shock, vibration
  • Interoperability: Ethernet plug & play, can operate where other detectors can’t (such as near x-ray scanners)

Standard exterior dimensions are 18.5 cm x 29.5 cm, custom sizes available.
